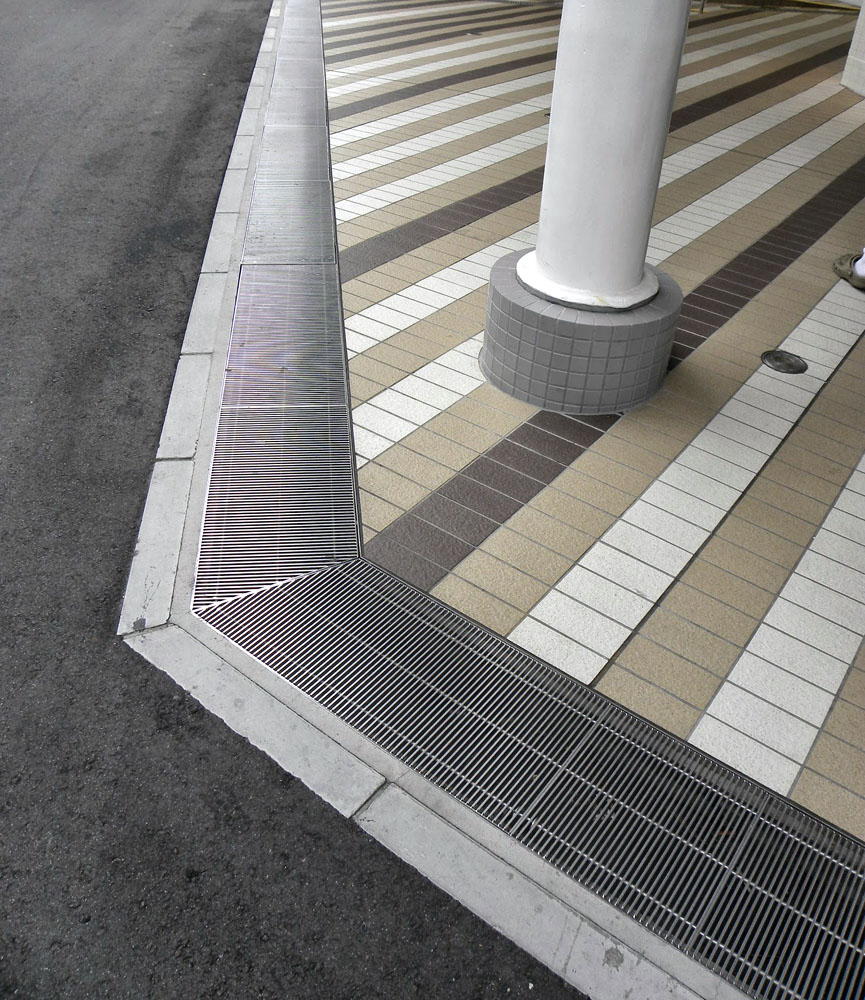

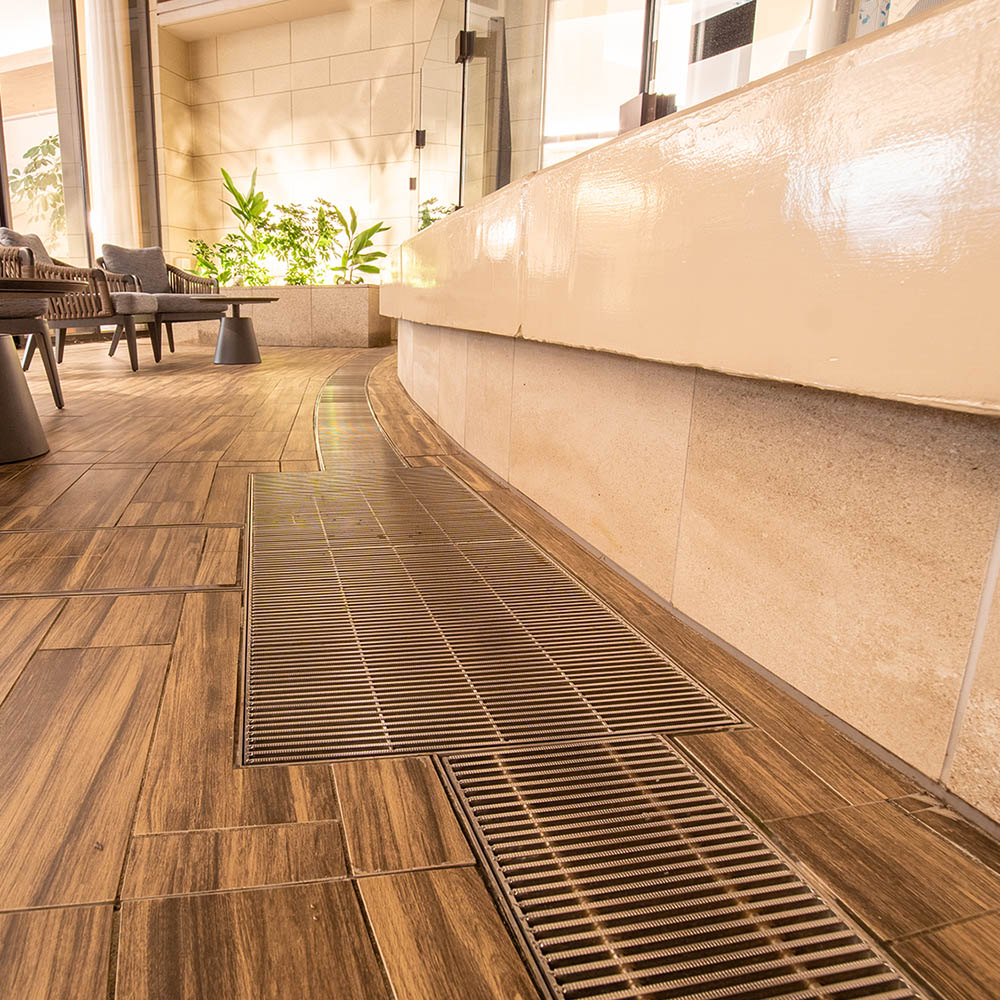

一般溝タイプ　横断・側溝　CSNB

一般溝タイプ　横断・側溝
型 式
CSNB
分類
一般溝用
仕様
ローレット加工
バー形状

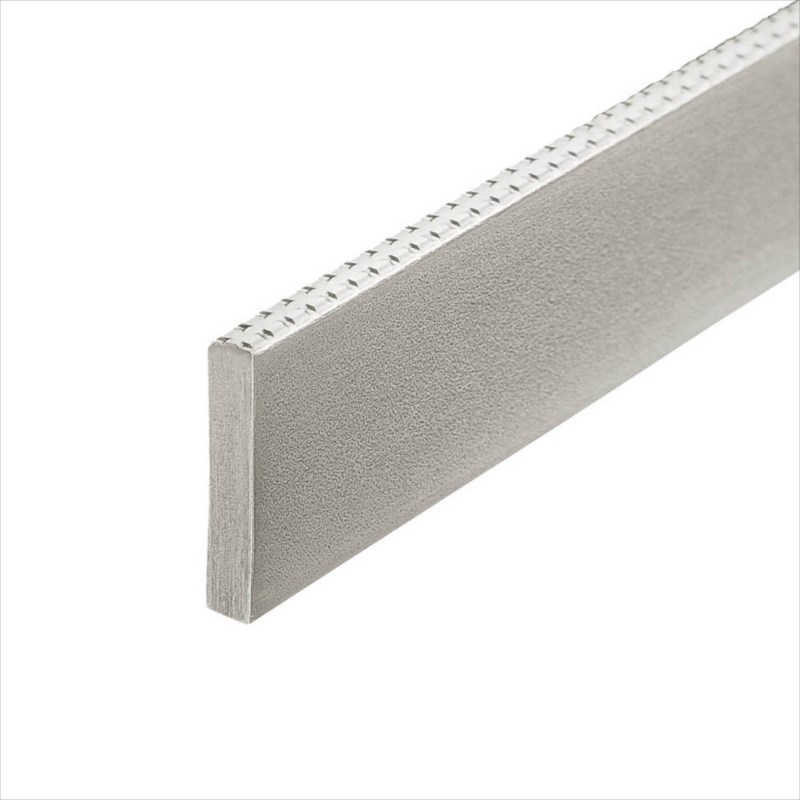

フラットバー4mm
適用荷重
T20　T14　T6　T2　歩道
強度区分
一般タイプ
備考
公共建築協会評価対象製品
適用荷重(横/側） 溝幅 型式記号 高さ 本体価格
（円/枚）		 受枠価格
（円/両1m）		 DXF DWG JWW PDF
T-6/T-14 100 CSNB-15-1_P=30 15 17,000 9,200 dxf dwg jww pdf
T-20 100 CSNB-20-1_P=30 20 23,500 9,400 dxf dwg jww pdf
T-20 100 CSNB-25-1_P=30 25 29,700 10,800 dxf dwg jww pdf
歩道/T-2 150 CSNB-15-1.5_P=30 15 21,200 9,200 dxf dwg jww pdf
T-2/T-14 150 CSNB-20-1.5_P=30 20 27,200 9,400 dxf dwg jww pdf
T-14/T-20 150 CSNB-25-1.5_P=30 25 32,000 10,800 dxf dwg jww pdf
T-20 150 CSNB-32-1.5_P=30 32 40,600 12,300 dxf dwg jww pdf
歩道 200 CSNB-15-2_P=30 15 26,900 9,200 dxf dwg jww pdf
歩道/T-2 200 CSNB-20-2_P=30 20 35,000 9,400 dxf dwg jww pdf
T-2/T-6 200 CSNB-25-2_P=30 25 40,300 10,800 dxf dwg jww pdf
T-14/T-20 200 CSNB-32-2_P=30 32 50,600 12,300 dxf dwg jww pdf
T-20 200 CSNB-38-2_P=30 38 58,700 13,800 dxf dwg jww pdf
歩道 250 CSNB-15-2.5_P=30 15 31,200 9,200 dxf dwg jww pdf
歩道 250 CSNB-20-2.5_P=30 20 40,800 9,400 dxf dwg jww pdf
歩道/T-2 250 CSNB-25-2.5_P=30 25 48,000 10,800 dxf dwg jww pdf
T-2/T-6 250 CSNB-32-2.5_P=30 32 58,300 12,300 dxf dwg jww pdf
T-6/T-14 250 CSNB-38-2.5_P=30 38 68,600 13,800 dxf dwg jww pdf
T-20 250 CSNB-50-2.5_P=30 50 88,700 16,000 dxf dwg jww pdf
歩道 300 CSNB-15-3_P=30 15 37,300 9,200 dxf dwg jww pdf
歩道 300 CSNB-20-3_P=30 20 49,400 9,400 dxf dwg jww pdf
歩道/T-2 300 CSNB-25-3_P=30 25 56,200 10,800 dxf dwg jww pdf
T-2 300 CSNB-32-3_P=30 32 68,600 12,300 dxf dwg jww pdf
T-2/T-6 300 CSNB-38-3_P=30 38 81,400 13,800 dxf dwg jww pdf
T-14/T-20 300 CSNB-50-3_P=30 50 105,500 16,000 dxf dwg jww pdf
歩道 350 CSNB-15-3.5_P=30 15 40,600 9,200 dxf dwg jww pdf
歩道 350 CSNB-20-3.5_P=30 20 55,100 9,400 dxf dwg jww pdf
歩道 350 CSNB-25-3.5_P=30 25 61,200 10,800 dxf dwg jww pdf
歩道/T-2 350 CSNB-32-3.5_P=30 32 75,500 12,300 dxf dwg jww pdf
T-2 350 CSNB-38-3.5_P=30 38 88,400 13,800 dxf dwg jww pdf
T-14 350 CSNB-50-3.5_P=30 50 109,000 16,000 dxf dwg jww pdf
歩道 400 CSNB-15-4_P=30 15 46,300 9,200 dxf dwg jww pdf
歩道 400 CSNB-20-4_P=30 20 62,900 9,400 dxf dwg jww pdf
歩道 400 CSNB-25-4_P=30 25 73,300 10,800 dxf dwg jww pdf
歩道/T-2 400 CSNB-32-4_P=30 32 87,500 12,300 dxf dwg jww pdf
T-2 400 CSNB-38-4_P=30 38 103,400 13,800 dxf dwg jww pdf
T-2/T-6 400 CSNB-50-4_P=30 50 129,400 16,000 dxf dwg jww pdf
歩道 450 CSNB-15-4.5_P=30 15 50,300 9,200 dxf dwg jww pdf
歩道 450 CSNB-20-4.5_P=30 20 70,000 9,400 dxf dwg jww pdf
歩道 450 CSNB-25-4.5_P=30 25 80,500 10,800 dxf dwg jww pdf
歩道/T-2 450 CSNB-32-4.5_P=30 32 94,100 12,300 dxf dwg jww pdf
歩道/T-2 450 CSNB-38-4.5_P=30 38 112,400 13,800 dxf dwg jww pdf
T2/T6 400 CSNB-50-4.5_P=30 50 135,000 16,000 dxf dwg jww pdf
T-14 100 CSNB-15-1_P=22 15 21,300 9,200 dxf dwg jww pdf
T-20 100 CSNB-20-1_P=22 20 28,600 9,400 dxf dwg jww pdf
T-20 100 CSNB-25-1_P=22 25 36,900 10,800 dxf dwg jww pdf
T-2 150 CSNB-15-1.5_P=22 15 27,400 9,200 dxf dwg jww pdf
T-14 150 CSNB-20-1.5_P=22 20 36,900 9,400 dxf dwg jww pdf
T-20 150 CSNB-25-1.5_P=22 25 46,000 10,800 dxf dwg jww pdf
T-20 150 CSNB-32-1.5_P=22 32 55,800 12,300 dxf dwg jww pdf
歩道/T-2 200 CSNB-15-2_P=22 15 34,100 9,200 dxf dwg jww pdf
T-2 200 CSNB-20-2_P=22 20 47,400 9,400 dxf dwg jww pdf
T-6/T-14 200 CSNB-25-2_P=22 25 57,900 10,800 dxf dwg jww pdf
T-20 200 CSNB-32-2_P=22 32 70,200 12,300 dxf dwg jww pdf
T-20 200 CSNB-38-2_P=22 38 82,500 13,800 dxf dwg jww pdf
歩道 250 CSNB-15-2.5_P=22 15 40,200 9,200 dxf dwg jww pdf
歩道/T-2 250 CSNB-20-2.5_P=22 20 56,100 9,400 dxf dwg jww pdf
T-2 250 CSNB-25-2.5_P=22 25 66,300 10,800 dxf dwg jww pdf
T-6/T-14 250 CSNB-32-2.5_P=22 32 79,700 12,300 dxf dwg jww pdf
T-14/T-20 250 CSNB-38-2.5_P=22 38 97,600 13,800 dxf dwg jww pdf
T-20 250 CSNB-50-2.5_P=22 50 128,000 16,000 dxf dwg jww pdf
歩道 300 CSNB-15-3_P=22 15 48,400 9,200 dxf dwg jww pdf
歩道/T-2 300 CSNB-20-3_P=22 20 65,300 9,400 dxf dwg jww pdf
T-2 300 CSNB-25-3_P=22 25 77,700 10,800 dxf dwg jww pdf
T-2/T-6 300 CSNB-32-3_P=22 32 92,400 12,300 dxf dwg jww pdf
T-14 300 CSNB-38-3_P=22 38 111,200 13,800 dxf dwg jww pdf
T-20 300 CSNB-50-3_P=22 50 146,400 16,000 dxf dwg jww pdf
歩道 350 CSNB-15-3.5_P=22 15 52,700 9,200 dxf dwg jww pdf
歩道 350 CSNB-20-3.5_P=22 20 71,900 9,400 dxf dwg jww pdf
歩道/T-2 350 CSNB-25-3.5_P=22 25 85,200 10,800 dxf dwg jww pdf
T-2 350 CSNB-32-3.5_P=22 32 104,100 12,300 dxf dwg jww pdf
T-2/T-6 350 CSNB-38-3.5_P=22 38 121,600 13,800 dxf dwg jww pdf
T-14/T-20 350 CSNB-50-3.5_P=22 50 150,100 16,000 dxf dwg jww pdf
歩道 400 CSNB-15-4_P=22 15 59,800 9,200 dxf dwg jww pdf
歩道 400 CSNB-20-4_P=22 20 81,300 9,400 dxf dwg jww pdf
歩道/T-2 400 CSNB-25-4_P=22 25 86,600 10,800 dxf dwg jww pdf
T-2 400 CSNB-32-4_P=22 32 115,500 12,300 dxf dwg jww pdf
T-2 400 CSNB-38-4_P=22 38 145,800 13,800 dxf dwg jww pdf
T-14 400 CSNB-50-4_P=22 50 170,700 16,000 dxf dwg jww pdf
歩道 450 CSNB-15-4.5_P=22 15 65,800 9,200 dxf dwg jww pdf
歩道 450 CSNB-20-4.5_P=22 20 87,000 9,400 dxf dwg jww pdf
歩道 450 CSNB-25-4.5_P=22 25 103,900 10,800 dxf dwg jww pdf
歩道/T-2 450 CSNB-32-4.5_P=22 32 127,800 12,300 dxf dwg jww pdf
T-2 450 CSNB-38-4.5_P=22 38 150,300 13,800 dxf dwg jww pdf
T14/T6 400 CSNB-50-4.5_P=22 50 184,700 16,000 dxf dwg jww pdf
T-14 100 CSNB-15-1_P=15 15 27,800 9,200 dxf dwg jww pdf
T-20 100 CSNB-20-1_P=15 20 39,800 9,400 dxf dwg jww pdf
T-20 100 CSNB-25-1_P=15 25 49,200 10,800 dxf dwg jww pdf
T-2/T-14 150 CSNB-15-1.5_P=15 15 35,800 9,200 dxf dwg jww pdf
T-20 150 CSNB-20-1.5_P=15 20 48,000 9,400 dxf dwg jww pdf
T-20 150 CSNB-25-1.5_P=15 25 54,900 10,800 dxf dwg jww pdf
T-20 150 CSNB-32-1.5_P=15 32 72,800 12,300 dxf dwg jww pdf
T-2 200 CSNB-15-2_P=15 15 45,900 9,200 dxf dwg jww pdf
T-2/T-14 200 CSNB-20-2_P=15 20 63,100 9,400 dxf dwg jww pdf
T-14/T-20 200 CSNB-25-2_P=15 25 75,900 10,800 dxf dwg jww pdf
T-20 200 CSNB-32-2_P=15 32 90,600 12,300 dxf dwg jww pdf
T-20 200 CSNB-38-2_P=15 38 111,800 13,800 dxf dwg jww pdf
歩道/T-2 250 CSNB-15-2.5_P=15 15 54,700 9,200 dxf dwg jww pdf
T-2 250 CSNB-20-2.5_P=15 20 71,900 9,400 dxf dwg jww pdf
T-2/T-14 250 CSNB-25-2.5_P=15 25 85,500 10,800 dxf dwg jww pdf
T-14/T-20 250 CSNB-32-2.5_P=15 32 104,200 12,300 dxf dwg jww pdf
T-20 250 CSNB-38-2.5_P=15 38 131,900 13,800 dxf dwg jww pdf
T-20 250 CSNB-50-2.5_P=15 50 169,300 16,000 dxf dwg jww pdf
歩道 300 CSNB-15-3_P=15 15 65,400 9,200 dxf dwg jww pdf
歩道/T-2 300 CSNB-20-3_P=15 20 82,800 9,400 dxf dwg jww pdf
T-2 300 CSNB-25-3_P=15 25 102,900 10,800 dxf dwg jww pdf
T-14 300 CSNB-32-3_P=15 32 126,700 12,300 dxf dwg jww pdf
T-20 300 CSNB-38-3_P=15 38 146,500 13,800 dxf dwg jww pdf
T-20 300 CSNB-50-3_P=15 50 195,800 16,000 dxf dwg jww pdf
歩道 350 CSNB-15-3.5_P=15 15 71,800 9,200 dxf dwg jww pdf
歩道/T-2 350 CSNB-20-3.5_P=15 20 94,100 9,400 dxf dwg jww pdf
T-2 350 CSNB-25-3.5_P=15 25 114,200 10,800 dxf dwg jww pdf
T-2/T-6 350 CSNB-32-3.5_P=15 32 136,800 12,300 dxf dwg jww pdf
T-14 350 CSNB-38-3.5_P=15 38 160,200 13,800 dxf dwg jww pdf
T-20 350 CSNB-50-3.5_P=15 50 202,500 16,000 dxf dwg jww pdf
歩道 400 CSNB-15-4_P=15 15 81,500 9,200 dxf dwg jww pdf
歩道/T-2 400 CSNB-20-4_P=15 20 107,600 9,400 dxf dwg jww pdf
歩道/T-2 400 CSNB-25-4_P=15 25 129,900 10,800 dxf dwg jww pdf
T-2 400 CSNB-32-4_P=15 32 157,400 12,300 dxf dwg jww pdf
T-6/T-14 400 CSNB-38-4_P=15 38 179,300 13,800 dxf dwg jww pdf
T-20 400 CSNB-50-4_P=15 50 232,400 16,000 dxf dwg jww pdf
歩道 450 CSNB-15-4.5_P=15 15 89,200 9,200 dxf dwg jww pdf
歩道 450 CSNB-20-4.5_P=15 20 118,100 9,400 dxf dwg jww pdf
歩道/T2 450 CSNB-25-4.5_P=15 25 140,600 10,800 dxf dwg jww pdf
T2 450 CSNB-32-4.5_P=15 32 170,600 12,300 dxf dwg jww pdf
T2/T6 450 CSNB-38-4.5_P=15 38 198,600 13,800 dxf dwg jww pdf
T20 400 CSNB-50-4.5_P=15 50 249,800 16,000 dxf dwg jww pdf
T-14 100 CSNB-15-1_P=13 15 31,900 9,200 dxf dwg jww pdf
T-20 100 CSNB-20-1_P=13 20 45,000 9,400 dxf dwg jww pdf
T-20 100 CSNB-25-1_P=13 25 54,300 10,800 dxf dwg jww pdf
T-6/T-14 150 CSNB-15-1.5_P=13 15 40,800 9,200 dxf dwg jww pdf
T-20 150 CSNB-20-1.5_P=13 20 56,000 9,400 dxf dwg jww pdf
T-20 150 CSNB-25-1.5_P=13 25 67,000 10,800 dxf dwg jww pdf
T-20 150 CSNB-32-1.5_P=13 32 85,600 12,300 dxf dwg jww pdf
T-2 200 CSNB-15-2_P=13 15 52,300 9,200 dxf dwg jww pdf
T-6/T-14 200 CSNB-20-2_P=13 20 69,800 9,400 dxf dwg jww pdf
T-20 200 CSNB-25-2_P=13 25 84,000 10,800 dxf dwg jww pdf
T-20 200 CSNB-32-2_P=13 32 109,200 12,300 dxf dwg jww pdf
T-20 200 CSNB-38-2_P=13 38 122,600 13,800 dxf dwg jww pdf
歩道/T-2 250 CSNB-15-2.5_P=13 15 61,400 9,200 dxf dwg jww pdf
T-2 250 CSNB-20-2.5_P=13 20 84,500 9,400 dxf dwg jww pdf
T-6/T-14 250 CSNB-25-2.5_P=13 25 98,100 10,800 dxf dwg jww pdf
T-20 250 CSNB-32-2.5_P=13 32 132,700 12,300 dxf dwg jww pdf
T-20 250 CSNB-38-2.5_P=13 38 144,400 13,800 dxf dwg jww pdf
T-20 250 CSNB-50-2.5_P=13 50 187,100 16,000 dxf dwg jww pdf
歩道 300 CSNB-15-3_P=13 15 73,800 9,200 dxf dwg jww pdf
T-2 300 CSNB-20-3_P=13 20 84,900 9,400 dxf dwg jww pdf
T-2/T-6 300 CSNB-25-3_P=13 25 115,600 10,800 dxf dwg jww pdf
T-14/T-20 300 CSNB-32-3_P=13 32 147,300 12,300 dxf dwg jww pdf
T-20 300 CSNB-38-3_P=13 38 161,600 13,800 dxf dwg jww pdf
T-20 300 CSNB-50-3_P=13 50 217,500 16,000 dxf dwg jww pdf
歩道 350 CSNB-15-3.5_P=13 15 80,200 9,200 dxf dwg jww pdf
歩道/T-2 350 CSNB-20-3.5_P=13 20 112,300 9,400 dxf dwg jww pdf
T-2 350 CSNB-25-3.5_P=13 25 134,300 10,800 dxf dwg jww pdf
T-6/T-14 350 CSNB-32-3.5_P=13 32 163,700 12,300 dxf dwg jww pdf
T-14/T-20 350 CSNB-38-3.5_P=13 38 180,400 13,800 dxf dwg jww pdf
T-20 350 CSNB-50-3.5_P=13 50 236,600 16,000 dxf dwg jww pdf
歩道 400 CSNB-15-4_P=13 15 91,300 9,200 dxf dwg jww pdf
歩道/T-2 400 CSNB-20-4_P=13 20 129,200 9,400 dxf dwg jww pdf
T-2 400 CSNB-25-4_P=13 25 152,600 10,800 dxf dwg jww pdf
T-2/T-6 400 CSNB-32-4_P=13 32 186,100 12,300 dxf dwg jww pdf
T-14 400 CSNB-38-4_P=13 38 201,600 13,800 dxf dwg jww pdf
T-20 400 CSNB-50-4_P=13 50 261,400 16,000 dxf dwg jww pdf
歩道 450 CSNB-15-4.5_P=13 15 99,900 9,200 dxf dwg jww pdf
歩道/T2 450 CSNB-20-4.5_P=13 20 140,500 9,400 dxf dwg jww pdf
歩道/T2 450 CSNB-25-4.5_P=13 25 165,200 10,800 dxf dwg jww pdf
T2 450 CSNB-32-4.5_P=13 32 203,700 12,300 dxf dwg jww pdf
T14/T6 450 CSNB-38-4.5_P=13 38 223,600 13,800 dxf dwg jww pdf
T20 400 CSNB-50-4.5_P=13 50 288,800 16,000 dxf dwg jww pdf
T-20 100 CSNB-15-1_P=10 15 46,100 9,200 dxf dwg jww pdf
T-20 100 CSNB-20-1_P=10 20 56,800 9,400 dxf dwg jww pdf
T-20 100 CSNB-25-1_P=10 25 69,600 10,800 dxf dwg jww pdf
T-14/T-20 150 CSNB-15-1.5_P=10 15 56,600 9,200 dxf dwg jww pdf
T-20 150 CSNB-20-1.5_P=10 20 70,500 9,400 dxf dwg jww pdf
T-20 150 CSNB-25-1.5_P=10 25 88,000 10,800 dxf dwg jww pdf
T-20 150 CSNB-32-1.5_P=10 32 111,000 12,300 dxf dwg jww pdf
T-2/T-6 200 CSNB-15-2_P=10 15 71,900 9,200 dxf dwg jww pdf
T-14/T-20 200 CSNB-20-2_P=10 20 88,700 9,400 dxf dwg jww pdf
T-20 200 CSNB-25-2_P=10 25 107,500 10,800 dxf dwg jww pdf
T-20 200 CSNB-32-2_P=10 32 139,000 12,300 dxf dwg jww pdf
T-20 200 CSNB-38-2_P=10 38 154,100 13,800 dxf dwg jww pdf
T-2 250 CSNB-15-2.5_P=10 15 85,100 9,200 dxf dwg jww pdf
T-2/T-14 250 CSNB-20-2.5_P=10 20 105,700 9,400 dxf dwg jww pdf
T-14/T-20 250 CSNB-25-2.5_P=10 25 128,800 10,800 dxf dwg jww pdf
T-20 250 CSNB-32-2.5_P=10 32 160,700 12,300 dxf dwg jww pdf
T-20 250 CSNB-38-2.5_P=10 38 186,400 13,800 dxf dwg jww pdf
T-20 250 CSNB-50-2.5_P=10 50 256,300 16,000 dxf dwg jww pdf
歩道/T-2 300 CSNB-15-3_P=10 15 101,400 9,200 dxf dwg jww pdf
T-2 300 CSNB-20-3_P=10 20 125,700 9,400 dxf dwg jww pdf
T-6/T-14 300 CSNB-25-3_P=10 25 151,800 10,800 dxf dwg jww pdf
T-20 300 CSNB-32-3_P=10 32 189,300 12,300 dxf dwg jww pdf
T-20 300 CSNB-38-3_P=10 38 214,200 13,800 dxf dwg jww pdf
T-20 300 CSNB-50-3_P=10 50 294,900 16,000 dxf dwg jww pdf
歩道/T-2 350 CSNB-15-3.5_P=10 15 111,400 9,200 dxf dwg jww pdf
T-2 350 CSNB-20-3.5_P=10 20 138,000 9,400 dxf dwg jww pdf
T-2/T-6 350 CSNB-25-3.5_P=10 25 166,000 10,800 dxf dwg jww pdf
T-14/T-20 350 CSNB-32-3.5_P=10 32 209,100 12,300 dxf dwg jww pdf
T-20 350 CSNB-38-3.5_P=10 38 238,200 13,800 dxf dwg jww pdf
T-20 350 CSNB-50-3.5_P=10 50 334,700 16,000 dxf dwg jww pdf
歩道 400 CSNB-15-4_P=10 15 135,300 9,200 dxf dwg jww pdf
歩道/T-2 400 CSNB-20-4_P=10 20 168,000 9,400 dxf dwg jww pdf
T-2 400 CSNB-25-4_P=10 25 201,300 10,800 dxf dwg jww pdf
T-14 400 CSNB-32-4_P=10 32 250,800 12,300 dxf dwg jww pdf
T-20 400 CSNB-38-4_P=10 38 287,000 13,800 dxf dwg jww pdf
T-20 400 CSNB-50-4_P=10 50 413,900 16,000 dxf dwg jww pdf
歩道 450 CSNB-15-4.5_P=10 15 138,700 9,200 dxf dwg jww pdf
歩道/T-2 450 CSNB-20-4.5_P=10 20 171,600 9,400 dxf dwg jww pdf
T2 450 CSNB-25-4.5_P=10 25 207,200 10,800 dxf dwg jww pdf
T6 450 CSNB-32-4.5_P=10 32 260,000 12,300 dxf dwg jww pdf
T14 450 CSNB-38-4.5_P=10 38 294,300 13,800 dxf dwg jww pdf
T20 400 CSNB-50-4.5_P=10 50 394,700 16,000 dxf dwg jww pdf

関連商品

最近チェックした製品

CSNBに関するお問い合わせ
